[Spring] XML Mapper로 DB에서 정보 조회하는 기능 구현 (Controller, DAO, DTO, Service, Mybatis)

MVC 구조 알아보기

jione-e.tistory.com/122

[Spring] Spring Framework MVC - Controller, Service, DTO(=VO), DAO

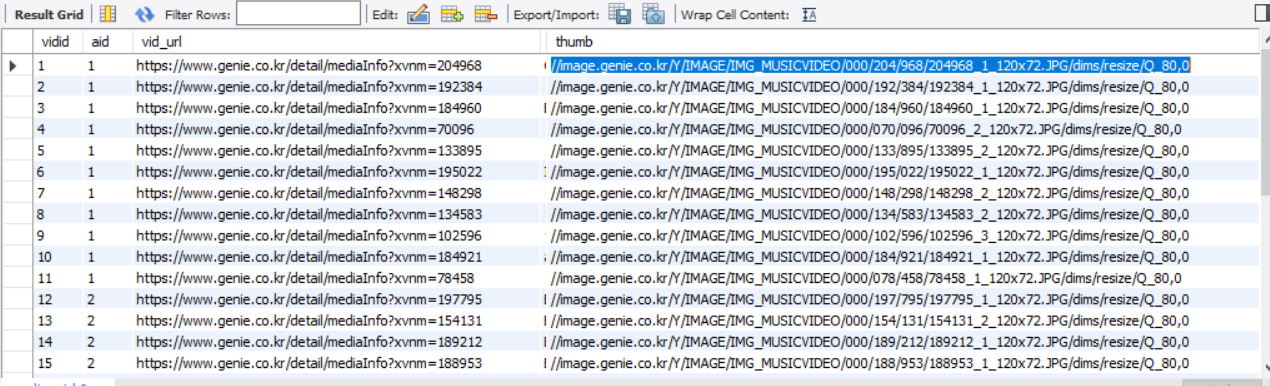

DB 구축

MySQL에 DB CREATE하고, 데이터 INSERT

* aid는 artist 고유 번호 (1=IU, 2=BTS, 3=오마이걸)







DTO 구현

[VideoDTO.java]

import lombok.Data;

@Data
public class VideoDTO {
	private int aid;
	private int vidid;
	private String vid_url;
	private String vid_name;
	private String thumb;
}

* lombok

jione-e.tistory.com/120?category=1005369









DAO 인터페이스

[VideoDAO.java]

import java.util.List;
import org.mybatis.spring.SqlSessionTemplate;
import com.genie.demo.dto.VideoDTO;

public interface VideoDAO {
	public abstract List<VideoDTO> GetVideoList(SqlSessionTemplate session,int aid);

}



DAO 구현

[VideoDAOImpl.java]

import java.util.List;
import org.mybatis.spring.SqlSessionTemplate;
import org.springframework.stereotype.Repository;

import com.genie.demo.dto.VideoDTO;

@Repository
public class VideoDAOImpl implements VideoDAO {

	@Override
	public List<VideoDTO> GetVideoList(SqlSessionTemplate session,int aid) {
		System.out.println("dao");
		return session.selectList("getVideo",aid);
	}

}







Mybatis Mapper

[mybatis-config.xml]

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
	"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<mappers>
		<mapper resource="mappers/userMapper.xml"/>
		<mapper resource="mappers/PhotoMapper.xml"/>
		<mapper resource="mappers/VideoMapper.xml"/>

	</mappers>
</configuration>





[VideoMaper.xml]

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace = "VideoMapper">

	<!--데이터 조회 -->
	<select id="getVideo" parameterType="int" resultType="com.genie.demo.dto.VideoDTO">
		SELECT *
		from media_vid
		WHERE aid = #{aid}
	</select>
</mapper>







Service 인터페이스

[VideoService.java]

import java.util.List;
import com.genie.demo.dto.VideoDTO;

public interface VideoService {
	public abstract List<VideoDTO> GetVideoList(int aid);
}







Service 구현

[VideoServiceImpl.java]

import java.util.List;

import org.mybatis.spring.SqlSessionTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.genie.demo.dao.VideoDAO;
import com.genie.demo.dto.VideoDTO;

@Service
public class VideoServiceImpl implements VideoService {

	@Autowired
	VideoDAO dao;

	@Autowired
	SqlSessionTemplate session;

	@Override
	public List<VideoDTO> GetVideoList(int aid) {
		System.out.println("service");
		return dao.GetVideoList(session,aid);
	}

}







Cotroller 구현

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.genie.demo.dto.VideoDTO;
import com.genie.demo.service.VideoService;

@RequestMapping("/")
@Controller
public class MediaController {

	@Autowired
	private VideoService videoService;

	@GetMapping("/{aid}/media")
		public String media(@PathVariable(value="aid") int aid, Model model) throws Exception{
		List<VideoDTO> videoList = videoService.GetVideoList(aid);


		for(VideoDTO item2 : videoList) {
			System.out.println(item2);
		}


		model.addAttribute("videoList", videoList);

		return "";
	}


}

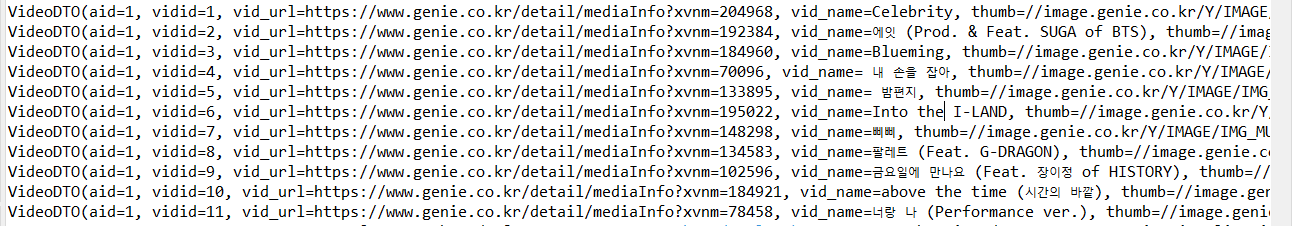

Postman에서 URL 입력해 테스트
